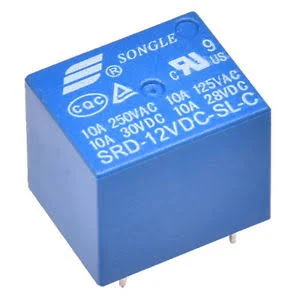

12V Cube Relay – SPDT, 5-Pin General Purpose Power Relay

12V DC Cube Relay – SPDT 5-pin for switching AC/DC loads.

Widely used in automation, control panels, inverters, and DIY circuits.

Reliable and durable relay for up to 10A switching.

Reliable 12V Relay for Power Switching and Control

The 12V Cube Relay is a Single Pole Double Throw (SPDT) electromagnetic relay used to switch heavy electrical loads using low-voltage control signals. It is widely used in automation systems, motor controllers, home appliances, security systems, and embedded electronics.

This relay features a 12V DC coil and 5-pin configuration (NO, NC, COM, coil pins), making it compatible with Arduino, relay driver circuits, and microcontrollers. The cube form factor allows for compact integration on PCBs or relay bases.

Specifications:

• Coil Voltage: 12V DC

• Contact Type: SPDT (Single Pole Double Throw)

• Contact Rating: 10A @ 250V AC / 10A @ 30V DC

• Number of Pins: 5

• Coil Resistance: ~400Ω (typical)

• Switching Type: Mechanical

• Mounting: Through-hole or socket mount

• Dimensions: Approx. 28mm x 28mm x 25mm

• Applications: Motor control, switching circuits, automation, alarms
